SB2263MGBE

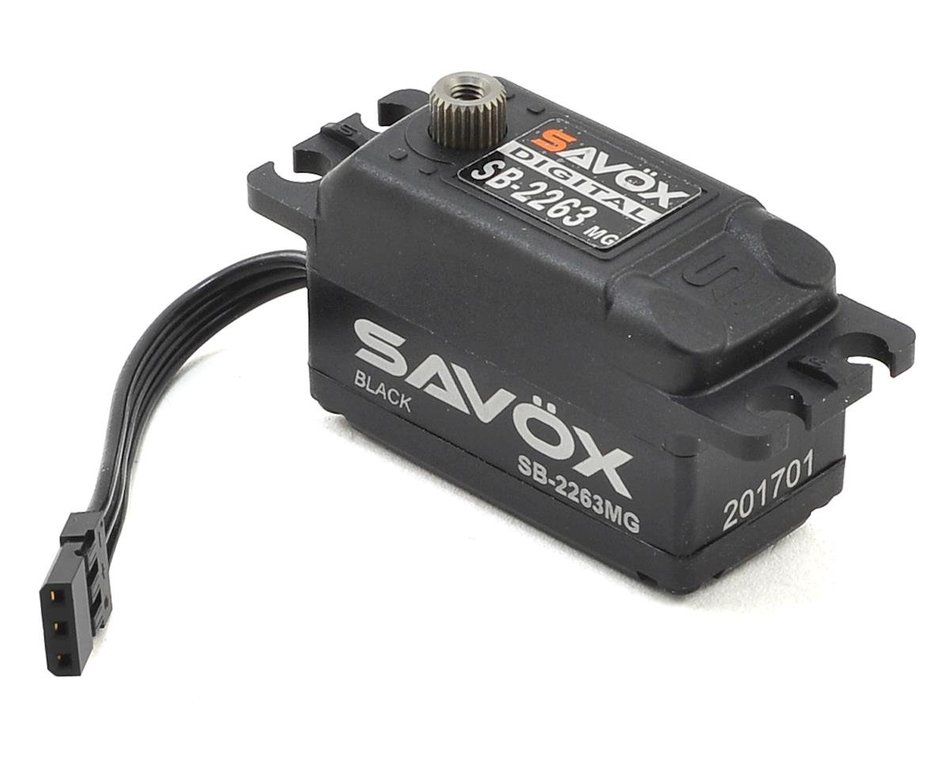

Savox's SB-2263MG Black Edition "High Speed" Low Profile Brushless Metal Gear Servo features a sleek black aluminum center case with laser etched details, as well as a shorter heavy duty wire. These servos combine leading edge technology with super high 12 bit (4096) resolution. These servos also feature a brushless motor/controller unit, and use a 'bullet proof' all metal gear set for unmatched strength that makes them ideal for 1/10 touring car and off road  applications that require a high speed servo.

Savox Black Edition Features:

Higher performance due to brushless motor and improved technology

Fast response

Incredible torque

Increased transit speed

Increased efficiency

Water resistant with 4 silicon seals implanted

Strong and precise-made metal gears

Suitable for 1/10 touring car and off road

*NOTE: Certain combinations of receiver and ESC have been found to cause "Brown Out" issues when combined with Savox servos. An external BEC, or BEC stabilizing receiver capacitor may be needed for efficient, glitch free operation in low voltage electric applications.

Specifications:

Torque:

@6.0V: 138.9 oz-in.

Speed:

@6.0V: 0.07sec/60°

Voltage Range: 6.0v

Weight: 62g

Motor: Brushless

Gear: Metal

Case: Aluminum Heatsink

Output Shaft: 25T Spline (Futaba)

Dimensions (LxWxH): 40.8x20.2x25.4mm

Frequency: 250-333hz

Pulse Width Frequency: 1520

Wire Length: 55mm
