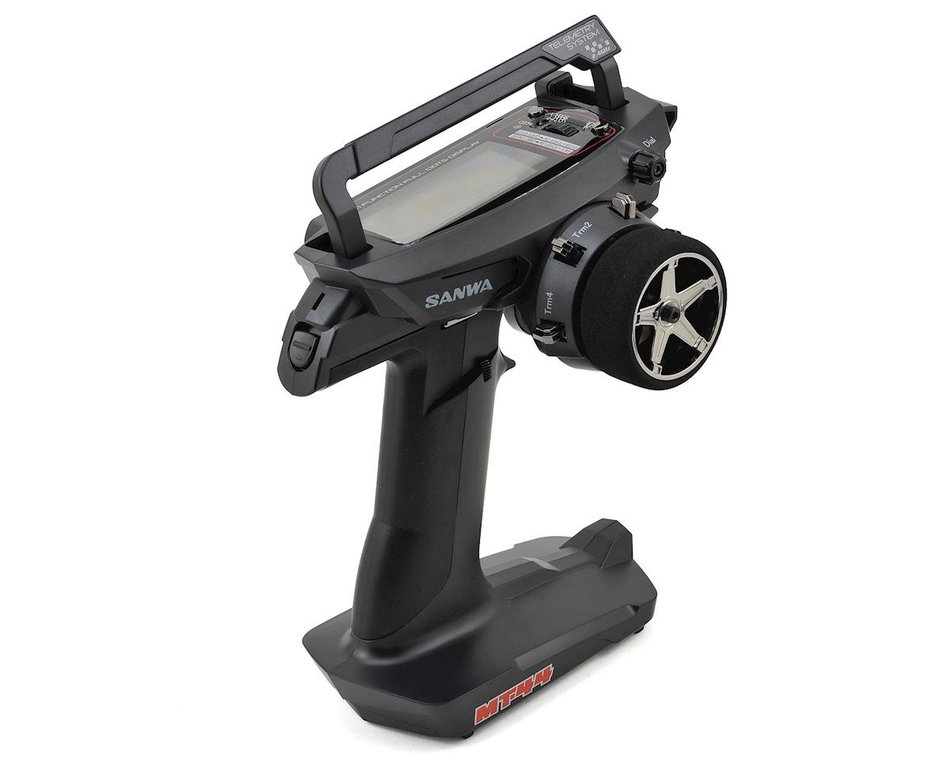

This is the Sanwa MT-44 FH4T/FH3 4-Channel 2.4GHz Radio System. The MT-44 is the next development for Sanwa offering impressive features in a lightweight and compact transmitter. Most notably, the MT-44 is the first to use low voltage technology as it's power source, using only three "AAA" batteries for power, or an optional 1S LiPo battery. This advancement not only helps reduce overall transmitter weight, but it also helps free up size, space and comfort requirements.

Other worthy features of the MT-44 transmitter include a white backlit HD display, a collapsible handle to provide full view of the LCD, USB charging, telemetry, 1S LiPo capabilities, FH4T and FH3 support.

Features:

High-resolution liquid crystal display

Dot size equivalent to that of the M12S

Optimization of steering & throttle position, even without offset bracket

Industry's first low-voltage transmitter

Powered by 3 "AAA" batteries (supports 1S LiPo)

USB charging support

Very Lightweight

Quick setup function

Safety link

Racing mode

Custom menu

Supports micro SD card

Telemetry switch function

Clock function

Environmental temperature display function

LOG data CSV output

Supports CODE 10 (name correspondence)

Telemetry data 3 simultaneous data display

Supports multiple languages ​​(Kanji compatible)

Other Functions:

Large Full Dot LCD Monitor

White LED Backlight

Fully Adjustable Trigger

Telemetry function

Built-in antenna body

Menu selector (multi selector operation)

ST, TH tension adjuster

Dual rate

End point adjustment

Anti-lock brake function

Servo speed

Offset ● Trim / sub trim

Servo Reverse

Curve (Exponential / Adjustable Rate Control)

AUX 1 (Select 3ch operation type, same function as MT-4S)

AUX 2 (Select 4ch operation type, same function as MT-4S)

Failsafe function (radio wave / battery)

Timer (wrap / interval / down)

20 model memory (when using SD card 250 models)

Model name (12 characters)

Model (select / clear / copy)

Direct model select

Trim Type (Center / Parallel)

Throttle Type (70: 30/50: 50)

RF MODE setting (FH4T / FH3)

Response mode setting (NOR / SHR / SSR) * Attention

Key Assign (SW / TRIM / DIAL / LEVER)

AUX TYPE setting

CODE AUX (with name change function)

Step AUX (steps 1 to 100)

Point AUX (2 to 6 points)

4WS mixing (FRONT / REAR / NORMAL (in-phase) / REVERSE (opposite phase))

MOA mixing (front wheel drive / four wheel drive / rear wheel drive) * Variable drive ratio

AUX mixing (ST mixing, TH mixing)

Buzzer (scale and volume change)

Transmitter battery alarm

LCD contrast

Volume adjustment

Mechanical steering angle adjustment

Small grip pad included

NOTE: SSL (Sanwa Synchronized Link) System

SANWA SSL SYSTEM:

When used with compatible RX-472, RX-482, Super Vortex Series, SV-Plus Series, the setting of ESC etc. by Transmitter is available through SSL functions while driving.

Since the setting can be done without the stop of car, the detailed adjustment in accordance with Race conditions is available without interruption of Intervals and the change of machine conditions.

RESPONSE OF TELEMETRY SYSTEM:

It is often said that telemetry system reduce response speed. However, SANWA Original Data Processing and Algorithm Design makes Telemetry possible without response speed reduction.

Sanwa's Excellent Telemetry System has no response speed reduction.

RESPONSE MODE:

Please do not use Analog Servo for SHR mode or SSR mode. If analog servo is used for SHR mode or SSR mode, the servo will be broken and will not work.

Digital servo (SRG series, Digital ERG series, SDX series) can be used both for NOR mode and SHR mode.

SSR mode can be used only by SRG series servo.

In SHR or SSR mode, BL-RACER, BL-FORCE, BL-SPORT, F2000, F2200, F3000, F3300, SBL-01, SBL-02 and SBL-03CR do not work. Please use NOR mode for the above ESC.

SV-08, HV-10, HV-12, F2500 can work by NOR/SHR MODE.
