X ROTOR 2306 MOTOR
Our PriceUS$26.99
Retail PriceUS$29.99
Code954308
San Diego Stock......0
San Marcos Stock......0
Out of stock

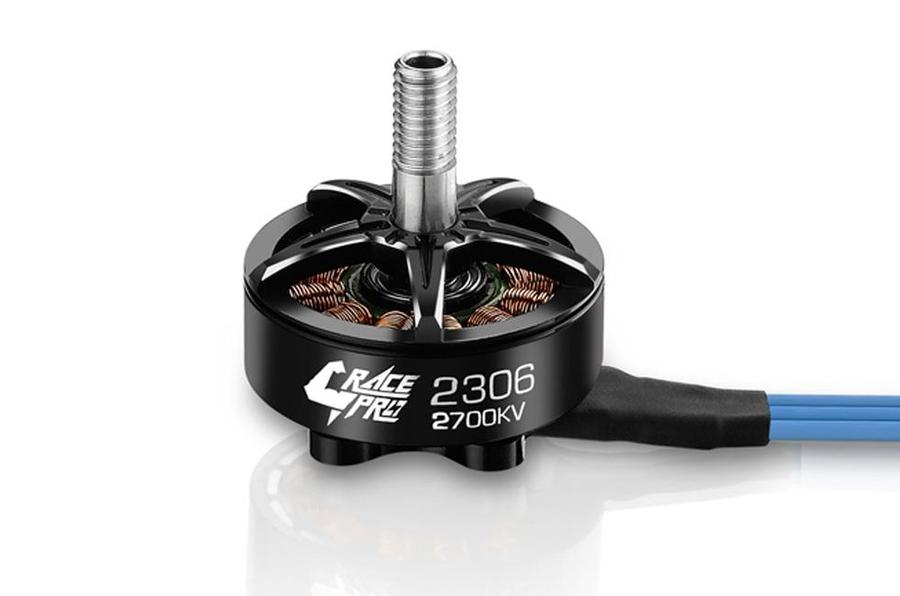

The Hobbywing Xrotor 2306 Race Pro is a motor specially designed for FPV professional-class freestyle and speed racing. It features quick acceleration, rapid response, high efficiency, and super low cogging torque which allows the motor to run as smooth as silk.

LiPo Cell 4S

No-Load Current(A/11.1V): 1.36A
Motor Resistance: 37.38mO
Max Cont. current (30s): 40.73A
Max Cont. Power (30s): 651.7W
Recommended ESC (A): 40~50A
Recommended Props: 5 inch

Features:

  • Ultra lightweight design
  • High quality 7075 aluminum, and high-precision CNC Machining technology
  • The hollow Titanium-alloy shaft reduces the shafts overall weight
  • Ultra-thin (0.1mm) Silicon steel laminations
  • Heat resistant NbFeB magnets ensure maximum torque under load
  • Specifications:

  • Weight: 27.5g (w/o wires)
  • Wire size: 20AWG/150mm
  • Stator Diameter/Thickness: 23mm/6mm
  • Slot/Rotor pole: 12S/14P
  • Rotor Diameter/Shaft Diameter: 27.9mm/5mm
  • Body Length (w/o, w/ Shaft): 17.3mm/30.7mm
