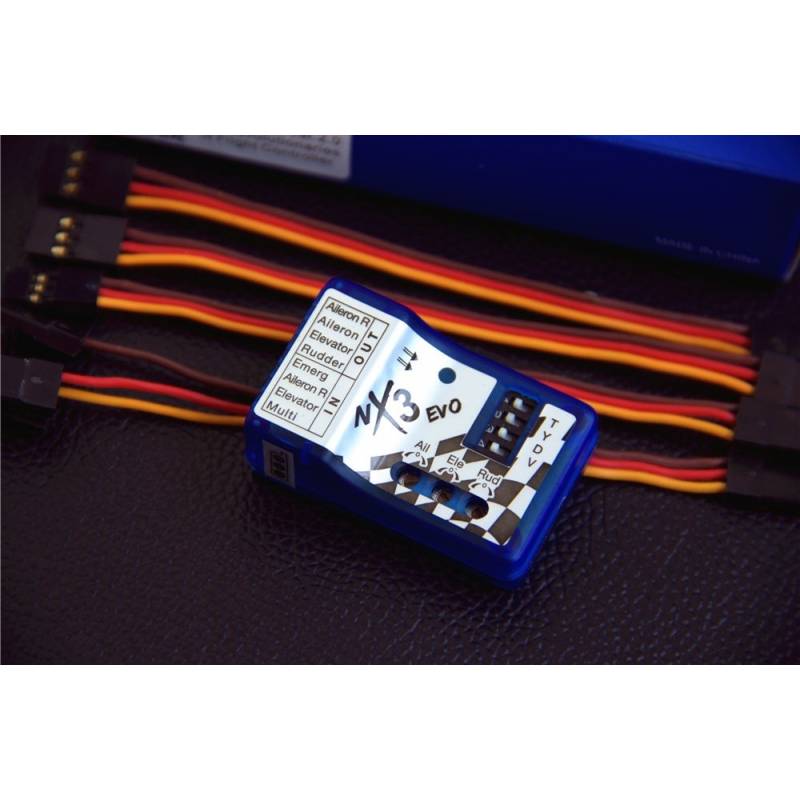

NX3 EVO 2D/3D Stabilizer for plane

NX3 EVO 2D/3D fixed-wing flight gyro NEW VERSION control board offers several new modes and more functionalities requested for a flight stabilizer. The NX3 stabilizer smoothes out air turbulence, but does much more. Also includes an Emergency mode to save your models.

Features

NX3 EVO provides four levels of flight modes:



Beginner: Aileron auto-leavel . roll angle limit to ±75 degree. When the aileron stick back to center position, the aileron will keep level automatically. The elevator will be control by youself, there is no auto-level function. But will provide obvious assist,the pictch have attitude locking function. Beginner mode is for very beginner player.Also can be used for short-range FPV.

Practice: Attitude locking for roll,pitch,yaw.restriction on roll and pitch speed. Practice mode do not have auto-level and angle limit function. Practice mode is for practise flying.

Promotion: Attitude locking for roll,pitch,yaw. Promotion mode is very likely from practice mode.It provide aititude locking function.Compare to practice mode,promotion mode supply more sensitive sense of control .

Expert: Simple Gyro correction.The best control sense. It supply a simple Gyro correction and anti-wind function.

Including emergency mode, One-key auto safety: Roll auto-level,climb up. You can triggle the emergency switch in beginner mode,practice mode,promotion mode and expert mode to activeate emergency mode.In emergency mode,airecraft will keep roll level and then climb up by a small degree.



Four wing types: Single / Dual aileron / Delta wing / V-tail.

Separate gain adjustment for each axis

Single/Separate Dual ailerons recognition capability.

Remote master gain adjustment during flight.

Including emergency mode, One-key auto safety.

Automatic stick centering

Automatic level offset, self-balance.

3D AVCS flight, Attitude locking.

Provide Y-wiring for aileron



Specifications

Voltage range: DC 4.5 – 6V

Response Frequency: 100Hz

Operating Temperature: 0-50°C

Dimension: 43x28x15mm

Weight: 11g

Packing List

NX3evo Flight Controller Board

NX3 evo Manual (english)

Servo Wire set

Double-sided Tape

Screwdriver*
