SIGRC-49

Earn your wings

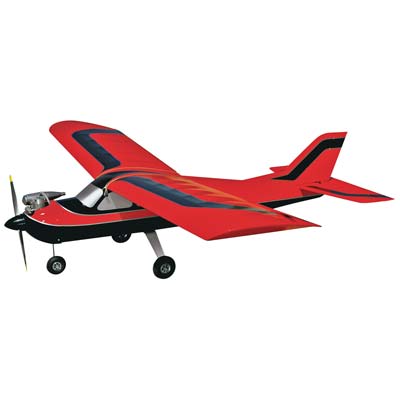

The Kadet Mark II is the aircraft that has turned thousands of fledgling flappers into serious RC pilots. With a little patience, you can learn to fly too! This smooth-flying high-wing bird is designed to give every pilot the smoothest, easiest flight possible. Get yours and set your sights on soaring!

• High wing stability
• Easy, slow flights
• Tricycle landing gear
• Strong, durable balsa construction
• Comprehensive photo instructions
• Molded ABS Cowling
• Elevator and rudder pushrods
• Aileron torque rods and pushrods
• Control horns
• Nose gear bearing
• Engine mounts
• Full hardware

Notes from our tech department:

This is the Glow Powered, Radio Controlled

Kadet Mark II Trainer Airplane Kit by Sig.

Ideal for beginning Builders and Pilots.

Offers rudder control with 3-channel radio, and aileron control with 4-channels

FEATURES

Construction: Die cut balsa and ply

Wing: One-piece with light wing loading for gentle flying

characteristics and slower speeds

Aileron Control: Single servo (when used with a 4-channel radio)

Cowl: Molded ABS, white in color

Engine Mount: Two-piece composite plastic

Landing Gear: One-piece prebent aluminum, 0.16 (4mm) diameter

steerable nose gear wire, nose gear bearing

INCLUDES

All required Balsa, Plywood and Spruce Wooden Parts

Landing Gear

Sig Easy Hinges

Engine Mount

Decals

CAD Drawn Plans

Instruction Manual

Hardware Pack

REQUIREMENTS

Radio: 3-4-Channel with 3-4 Standard Servos

Engine: .25 - .40 cu in (4.0 - 6.5 cc) 2-stroke

Fuel Tank: 6-8oz (177-240cc)

Spinner: 2 (51mm) diameter

Wheels: Three 2-12

Covering: Three rolls

Prop, glow starter, fuel, building and field equipment

SPECIFICATIONS

Wingspan: 57.25 (1455mm)

Wing area: 635 sq in (41.0 sq dm)

Length: 44.25 (1125mm)

Flying Weight: 5 lbs. (2268)

Airfoil: Flat bottom

Wing Loading: 14 - 15.5 ozsq ft (43 - 47 g sq dm)

Center of Gravity (CG): 2-58 - 3-18 (66 - 79mm) aft of leading

edge of wing measured at the fuselage

Control Throws:

Beginner Sport Aerobatic

Elevator: 38 (9mm) 716 (11mm) 916 (14mm)

Rudder: 516 (8mm) 716 (11mm) 916 (14mm)

Ailerons updown: 38, 516 716, 38 12-916, 716-12
