TRA37054-1

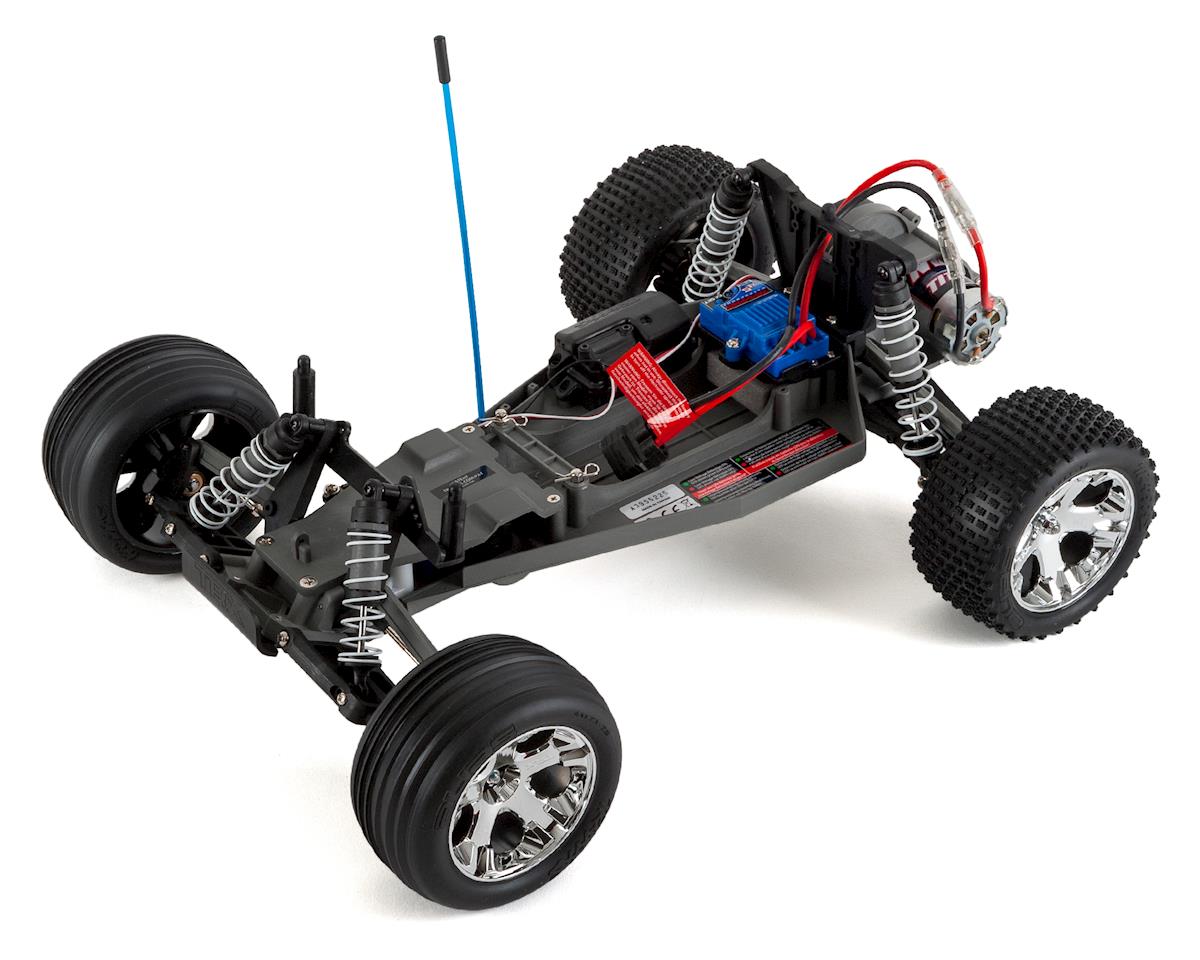

This is the Traxxas Rustler 1/10 RTR Stadium Truck, with an included TQ 2.4GHz radio system, waterproof XL-5 ESC, Traxxas Power Cell 7-Cell 3000mAh battery and Peak Detecting DC Charger. Now featured with this kit are the updated Traxxas iD connectors now included as standard equipment.

CHARGER NOTE: The included charger requires a cigarette lighter socket found in full size vehicles to charge. If this is not your preference, Traxxas offers an adapter allowing you to charge from a standard home AC electrical socket (TRA2976).

The Traxxas Rustler is Traxxas' best-selling stadium truck, built with a proven a formula for rugged fun. With more power, smoother control, better grip, and performance that makes it one of the fastest Ready-To-Race® electric trucks available, the Rustler blows the doors off the competition. The powerful Titan® 12-Turn modified 550 motor, XL-5 Electronic Speed Control, and Revo®-spec Torque-Control™ slipper clutch were designed to deliver full-throttle, off-road action that will stand up to fun aggressive driving — and not just in the dirt! With Traxxas' waterproof electronics, Rustler can blast through puddles, mud and snow. Your R/C adventures are limited only by your imagination! And with a top speed of 35+mph*, the Rustler leaves everything else in the dust.

The durable, fiber-composite chassis is designed for exceptional rigidity, and offers an inline battery position to deliver nimble handling and lightening-fast response. The low-profile "lay-down" steering servo mounting system further enhances the already low CG design. Rustler delivers superior stability and cornering thanks to its centered kingpin and live axle front suspension. An efficient 3-gear variable-ratio transmission with sealed ball bearings and smooth-running telescoping driveshafts deliver the power to the wheels. In addition to those advanced features, the factory-installed planetary differential is Traxxas-tough with hardened steel gears that never need adjusting!

The 6-color ProGraphix® body and decal set have been combined with 2.8" mirror-chrome All-Star™ wheels to complete the stunning Rustler package, while the performance-engineered pre-glued Alias™ step-pin tires at the rear and sharp-edged Alias ribbed tires up front provide excellent traction, with a solid, planted feel. Perfect for long-lasting, all-day fun, just take the Rustler out of the box, charge up the battery, and drive!

Features:

Sealed Electronics Extend Your Driving Fun

The Traxxas Rustler is Ready-To-Race with waterproof technology. The XL-5 electronic speed control and the mini receiver are sealed from the elements giving you the freedom go places you never thought possible. This opens up a whole new world of adventure and fun.

Revo-spec Torque-Control™ Slipper Clutch

The Rustler is fully loaded with innovative performance features such as the advanced Revo-spec Torque-Control™ slipper clutch that delivers smooth operation, precise adjustment, and consistent traction control.

Titan 12T 550 Modified Motor

The Titan 12T 550 modified motor delivers mod-motor power, with long-lasting, virtually maintenance-free performance. The Titan 12T 550 motor's integrated cooling fan pulls cool air through the motor to keep temperatures down, and airflow is routed through vent tunnels molded in the motor plate. A cooler running motor means faster speeds, longer runtime, and extended motor life.

Waterproof XL-5 Electronic Speed Control

The waterproof XL-5 Electronic Speed Control offers high current handling, EZ-Set™ one-button setup, and smooth high-frequency control. Three drive profiles, low voltage detection, thermal shutdown protection, gold-plated connectors, and incredibly low resistance are all features you expect to find on an expensive replacement ESC. Plus, the XL-5 is the first electronic speed control that has the exclusive Traxxas Training Mode™ that limits full-throttle power to 50%. This allows young or new drivers to safely develop their control skills before unlocking full power to the mighty Titan 12T motor. Rustler is perfect for drivers of any age and experience.

Traxxas Power Cell Battery Included!

Power Cell packs are optimized for free-flowing power and maximum punch with premium quality, low-resistance cells; flexible, silicone-jacketed 12-gauge wire; heavy-duty welded tabs; and Traxxas' high-output, gold plated, high-current connectors. Seven cells give Rustler 8.4 volts of motivation for maximum speed, and precision assembly with attractive, individually wrapped cells and clear overwrap complete the Traxxas Power Cell package.

Traxxas High-Current Connector

The High-Current Traxxas connector is more than just another connector, it's a virtual fail-safe. Each High-Current connector is specifically designed to mate with the proper charger.

Precision 2.4GHz Control Radio System

With the TQ™ 2.4GHz radio system, you just switch on a drive. There are no channels or frequencies to manage, so the focus is on having fun. The TQ’s ergonomic design is comfortable for all-day driving, and its sleek lines are enhanced by an internal antenna that is impervious to damage.

Features:

Traxxas TQ 2.4GHz Radio System

Traxxas #6519 TQ 3-channel micro receiver

Waterproof electronics permit driving in water, mud and snow

Waterproof receiver box

High-torque Waterproof Traxxas #2056 steering servo

Powerful Titan® 12T 550 modified motor with internal cooling fan.

Rustler reaches speeds in excess of 35mph using the included optional 28-tooth pinion gear*

High-performance waterproof XL-5™ Electronic Speed Control:

Innovative watersealed design

Three Drive Profiles

Sport Mode - Forward / Brake / Reverse

Race Mode - Forward / Brake

Training Mode™ - 50% Forward / Brake / 50% Reverse (patent pending)

12-Turn motor limit for 550 size motors

15-Turn motor limit for 540 size motors

Integrated on/off switch

Traxxas EZ-Set® one-button setup

LiPo, NiCad, and NiMH compatible with two-stage low-voltage detection

Large heat sink

High-efficiency MOSFET transistors

Large axle carriers with 5x11mm oilite bushings

Efficient Magnum 272™ three-gear transmission with ball bearings

Sealed gearbox protects the transmission with beefed up motor guard for extra protection

Revo®-spec Torque-Control™ slipper clutch system

External gear cover with easy slipper access

Reliable planetary gear differential

Telescoping U-joint driveshafts

Fiber-composite monocoque chassis

Gray chassis components offer a fresh look

Speed control and waterproof receiver box are securely fastened to chassis

Easy access battery compartment

Fully adjustable Ultra Shocks™ with X-ring technology

White powder coated shock springs feature a new responsive spring rate

Durable solid camber links eliminate the need for adjustment

Captured rod ends won't pop off for superior durability

Alias™ step-pin rear tires and front Alias ribbed front tires offer superior off-road traction

Rustler's tires include performance foam inserts and they come pre-glued on mirror-chrome 2.8" All-Star™ wheels

Wing is securely attached to the body with precision hex hardware

Rustler is backed by unparalleled Traxxas support and parts availability

Specifications:

Length: 17.5" (445mm)

Front Track: 12.25" (311mm)

Rear Track: 12.25" (311mm)

Weight: 59.6oz (1.69 kg)

Height (overall): 7" (178mm)

Wheelbase: 11.375" (289mm)

Electronic Speed Control: XL-5™ Electronic Speed Control

Motor (electric): Titan® 12T 550 (12-turn 550)

Steering Servo: TRA2056 High Torque Waterproof

Transmitter: TQ 2.4GHz Radio

Receiver: TRA6519 TQ 3-Channel Micro

Gear Ratio (internal): 2.72 (final drive: 10.17)

Gear Pitch: 48-Pitch

Transmission: Magnum 272™

Steering: Bellcrank

Chassis Type: Modified Tub

Chassis Material: Composite Nylon

Battery Tray Dimensions: 139x47.5x28mm (Battery expansion kit available - TRA3725X)

*Top-Speed: 35+mph (With included 7-cell battery and optional 28-tooth pinion gear)

Skill Level: 1

Includes:

Traxxas Rustler RTR Stadium Truck

TQ 2.4GHz Radio System

3-Channel Micro Receiver

XL-5 Waterproof ESC

Titan 12 Turn 550 Motor

7-Cell Traxxas Power Cell NiMH Battery Pack

4 Amp Peak Detecting DC Charger

Needed to Complete:

(4) 4 "AA" batteries for transmitter
